Silicon Fiber Glass Braided Cable Sleeving is non-alkali fiberglass braided then coated with silicone resin and treated in high temperature....Send Inquiry

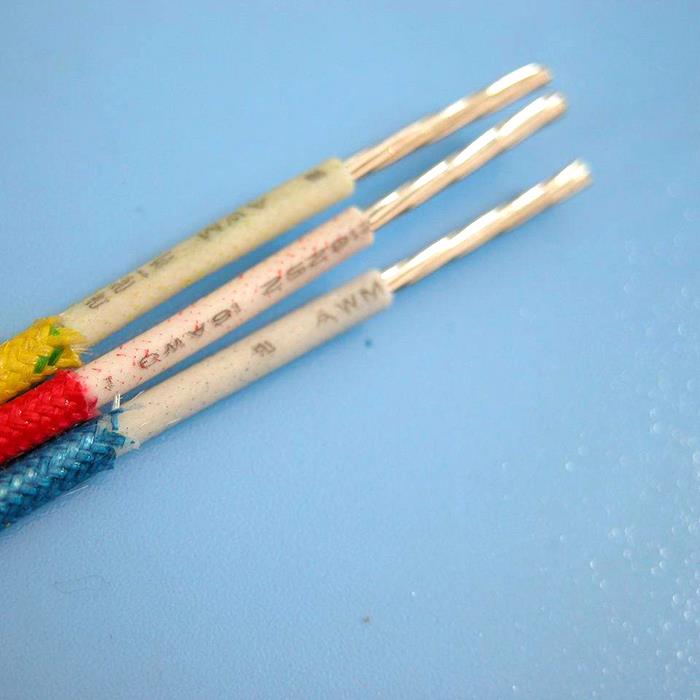

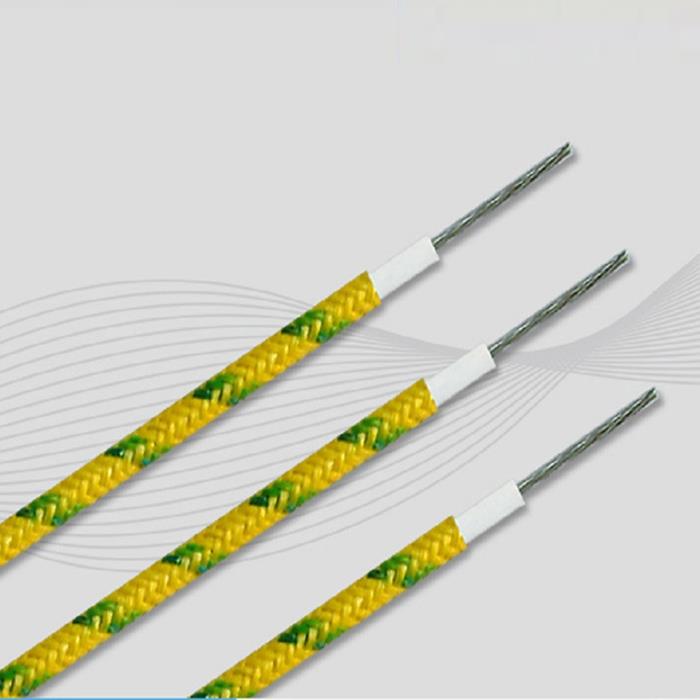

Silicon Fiber Glass Braided Cables is the best alternative to PVC, plastic and rubber insulated wire, widely used in high temperature applications. Silicon Fiberglass Braided Cables have their prime applications in steel mills, foundries, glass factories, etc. Ensure overall abrasion resistance coverage, they are impregnated with high class insulating thermosetting varnish that can sustain wide range of temperature from 70 to 200 degree Celsius. With ability to retain excellent di-electric properties when burnt, they are flame retardant and self-extinguishing. In addition to this, they are also resistant to fungus, UV radiations, corona discharge, acids and manganese. Silicon Fibreglass Braided Cables are made with tinned copper stranded wires that are wounded twice and overlapped with polyester films braided with fiberglass.
●Other details of Silicon Fiberglass Braided Cable:
1.1 KV Grade, Multi-strand Annealed Tinned Copper (ATC) Conductor As per IS: 8130/1984 class-V, Melinex Taped, Silicon Rubber Insulated type (IE-5) As per IS: 6380/1984 & overall Fiber glass Braided with silicon varnished Rubber Flexible Cable for200°C As per IS:9968/Pt-l/1988
Tinned Copper stranded wires twice wounded opposite and well overlapped with polyester films braided with fiberglass yarn and impregnated with high class insulating thermosetting varnish flexible up to temperature from 70"C to 200°C. Resists moisture chemicals, flames fungus radiation, corona discharged and acids ozone attack and even manages to retain excellent Di-electric properties when burnt
●Application of Silicon Fiberglass Braided Cable:
Typical industrial applications include food processing packaging, refrigeration furnaces and lighting
It is used extensively as motors, transformers, lead wire and at places where conventional PVC wire is not suitable.
Production flow of Silicon Fiberglass Braided Cable
1.What is your delivery date?
A:The delivery date is about 5-7 days after receipt of payment.
2.What are your payment terms?
A:30% deposit in advance and 70% balance before shipment.
3.Can you send free samples?
A:Yes, free samples are available; you just need to pay the shipping cost.
Our usual packaging ways for Silicon Fiberglass Braided Cable are as followings, OR it can be as customer's request.
