RVV 2 Core 3 Core 4 Core Flexbile Electrical Wire Cable

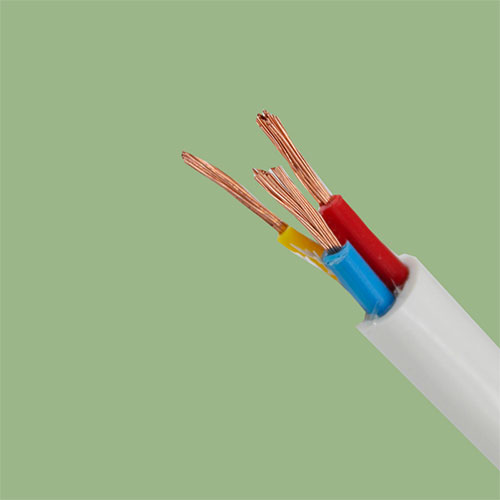

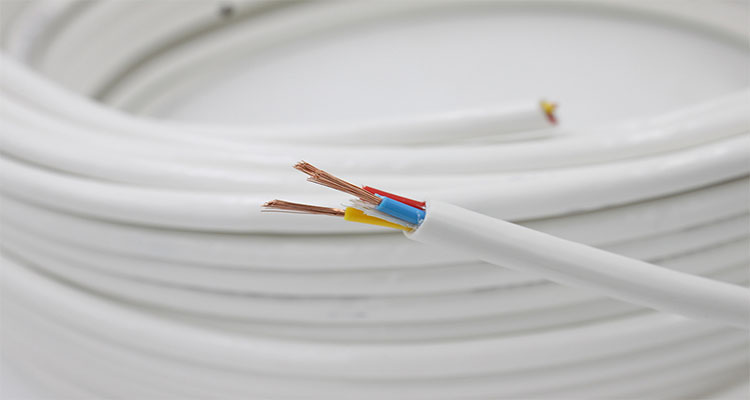

RVV 2 Core 3 Core 4 Core Flexbile Electrical Wire Cable

300/500V RVV 2 Core 3 Core 4 Core 1.5mm 2.5mm Flexbile Electrical Wire Cable.Raw materials from the world's leading non-ferrous metal integrity industry chain global enterprises.... Send Inquiry
Product Details

Quick Details:

Place of Origin: China(Mainland)

Color:  Accept customize

Conductor Material: Copper

Work Temperature: - 30°C ~ +80°C

Rated Voltage: 300/500V/450/750V

Insulation: PVC

Application: Industry

Type: Rvv Cable

Model Number: RVV

MOQ: 2000M



Product Description:

300/500V RVV 2 Core 3 Core 4 Core 1.5mm 2.5mm Flexbile Electrical Wire Cable

Operating characteristics

1.Max. permissible continuous operating temperature of the conductor:90℃ for BV-90,RV-90 type cable and 70℃ for other types.

2.The ambient temperature under installation shall not be lower than 0℃,

3.Recommended bending radius:

OD is less than 25mm,the bending radius shall be not less than 4 times of the cable’s OD.

OD is more than and including 25mm,the bending radius shall be not less than 6 times of the cable’s OD.

Core color identification

3 core:Light blue/brown/green yellow or black/brown/light blue;

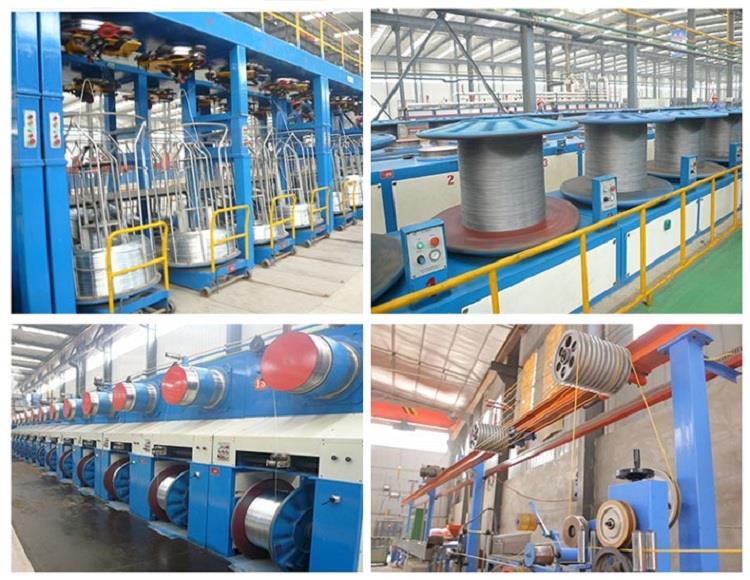

Our Facrtory:



Packaging & Shipping

The electrical wires should be packed in pp bags or wooden cases,100 meters per roll or according to customer's requirements.





Inquiry
Hot Tags: rvv 2 core 3 core 4 core flexbile electrical wire cable, manufacturers, suppliers, factory, wholesale, quotation, customized
