Flat Gray Laminated Cable provide easy reliable connection of multiple data points and/or power points in a small, light, flexible, space saving profile. It is a laminated cable consisting of 1 or more flat conductors laid parallel on a specified pitch and laminated between two layers of dielectric. The flat conductors are typically oxygen free annealed copper and are either bare or tin coated. The dielectric is typically 1 mil or 2 mils of polyester film. Flat Gray Laminated Cable or other films can be used depending on application. It can be creased, punched, and folded as required to meet custom applications. In flexing applications, such as connection to a print head, millions of cycles to failure can be achieved depending on radius of bend. Additionally it can be shielded on one or both sides with any combination of traces attached to the shield. All circuits are made to order and can be provided in lengths ranging from 12mm to 100 meters and from 1 trace to over 100 traces.
FEATURES of Flat Gray Laminated Cable:
●Small, light, flexible, space saving profile
●Can be creased, punched, and folded
●Polyester, Polyimide & Other Film Options
●Gold plated exposures available
●Oxygen-free annealed copper (bare or tin coated)
●Lengths from 12mm to 100 meters
●1 to over 100 traces attached to shielding
●Made to order

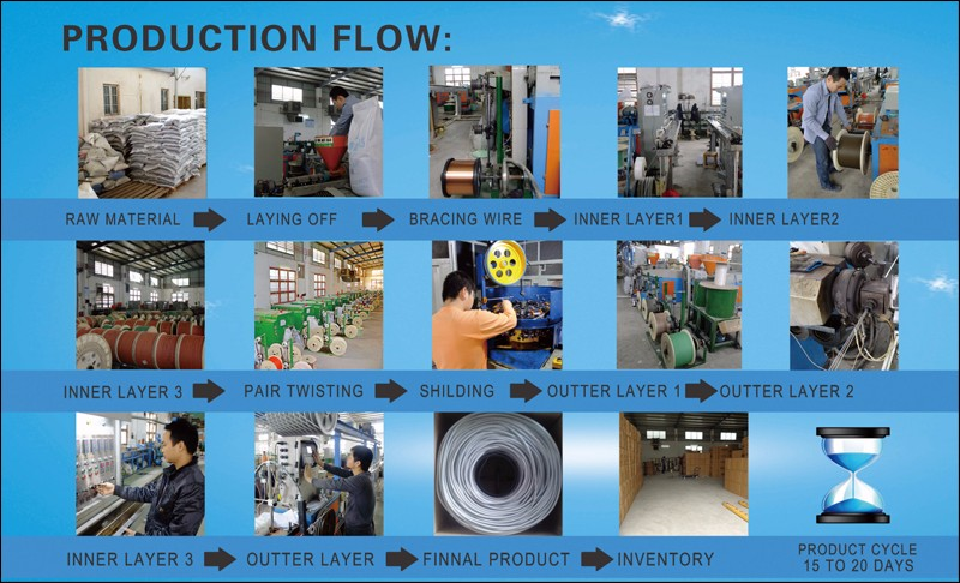

Production flow of Flat Gray Laminated Cable
1.What is your delivery date?
A:The delivery date is about 5-7 days after receipt of payment.
2.What are your payment terms?
A:30% deposit in advance and 70% balance before shipment.
3.Can you send free samples?
A:Yes, free samples are available; you just need to pay the shipping cost.
Our usual packaging ways for Flat Gray Laminated Cable are as followings, OR it can be as customer's request.
