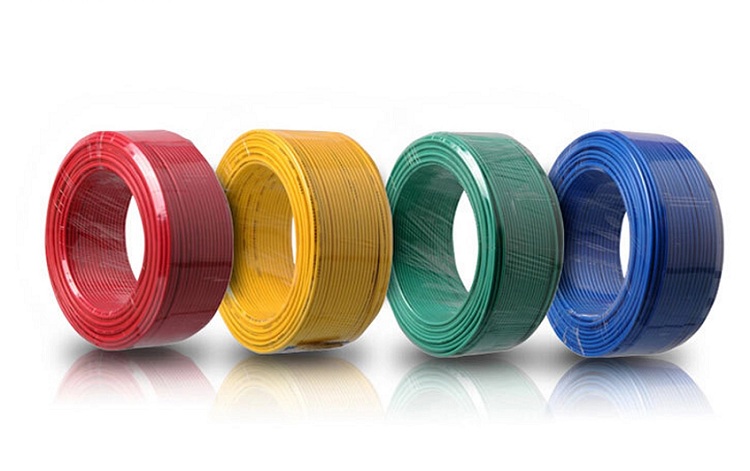

Pvc Insulated Electrical Wire Grounding Earth BV Cable

Pvc Insulated Electrical Wire Grounding Earth BV Cable

The cable has the advantage high mechanical strength,good ambient stress resistance,good electrical properties and anti-chemical corrosion. It applies to electrical power transmission and distribution lines with AC rated Voltage up to 450/750V. The cable is for general purpose, as building wire for power, lighting and control wire to electrical appliances, suitable for use in conduit and for fixed, protected installation.General purpose single core hard without sheathed cable conductor,is fit for AC voltage 450 / 750V and below power plant, household appliances, instruments and telecommunications equipment, cable and wires. With anti-acid-base, oil resistance, moisture, mildew and other characteristics.... Send Inquiry
Product Details

Quick Details:

Place of Origin: China(Mainland)

Color:  Red,Yellow,Green,Blue,Black,.etc.

Conductor Type: Solid

Insulation Material: PVC

Jacket: PVC PE XLPE

AWG: 1.5-400mm

Rated Voltage:300/500V450/750V

Tensile Strength(n/mm): > 1960mpa

Core wire: Copper

Feature: Waterproof

Multiple Copper cores

AWG:2-50mm

Type: Insulated

MOQ: 2000M





Product Description:

Hot  Products Yellow Green Pvc insulated Electrical Wire Grounding Earth BV Cable.The cable has the advantage high mechanical strength,good ambient stress resistance,good electrical properties and anti-chemical corrosion. It applies to electrical power transmission and distribution lines with AC rated Voltage up to 450/750V. The cable is for general purpose, as building wire for power, lighting and control wire to electrical appliances, suitable for use in conduit and for fixed, protected installation.General purpose single core hard without sheathed cable conductor,is fit for AC voltage 450 / 750V and below power plant, household appliances, instruments and telecommunications equipment, cable and wires. With anti-acid-base, oil resistance, moisture, mildew and other characteristics.



Specifications:

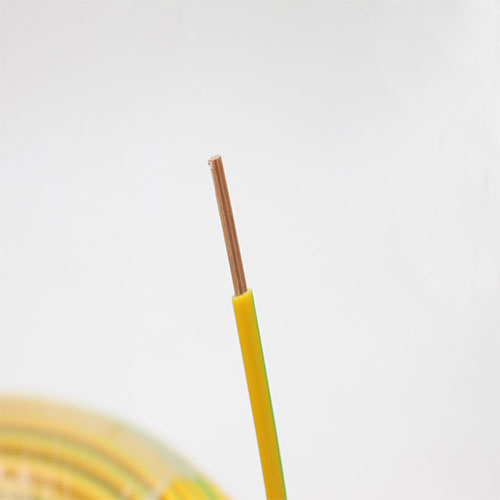

  1.5mm single core cable
  high quality affordable cost
  IEC/BS/VDE

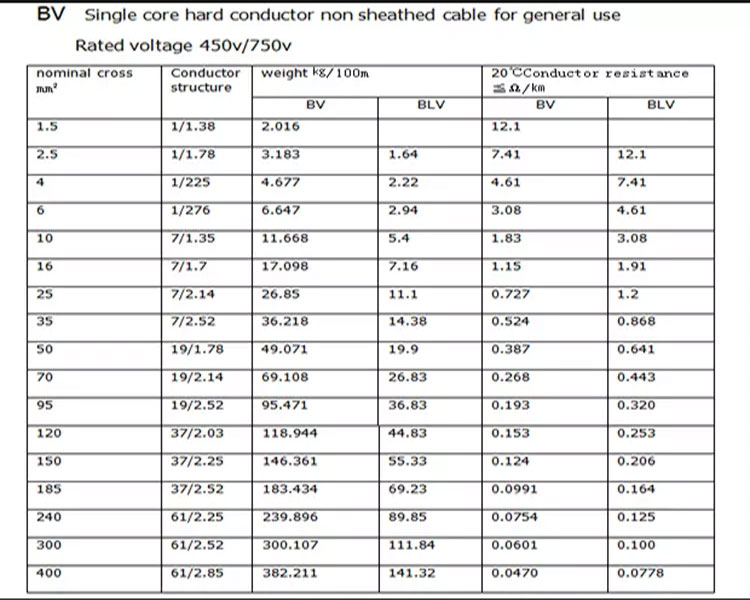

2. Product perameter:

Model Number

BV CABLE

 Rated voltage

300/500V,450/750V

 Insulation

PVC material

 Cores

1 cores

 Cross section area

0.5~630sqmm

 Certification

ISO9001,CE,CCC,RoHS

 Standard applied

IEC 60227, BS 6004, VDE 0281, GB/T 5023, JB/T8734

 Max. working temp.

70°C,can be 90°C,105°C per requirement

 Conductor

Class 1/2 plain annealed copper wires, solid or stranded.

 Color

Brown, Grey, Black, Blue, Green/Yellow or others on request

 Packing

100 meters per roll or as per requirement

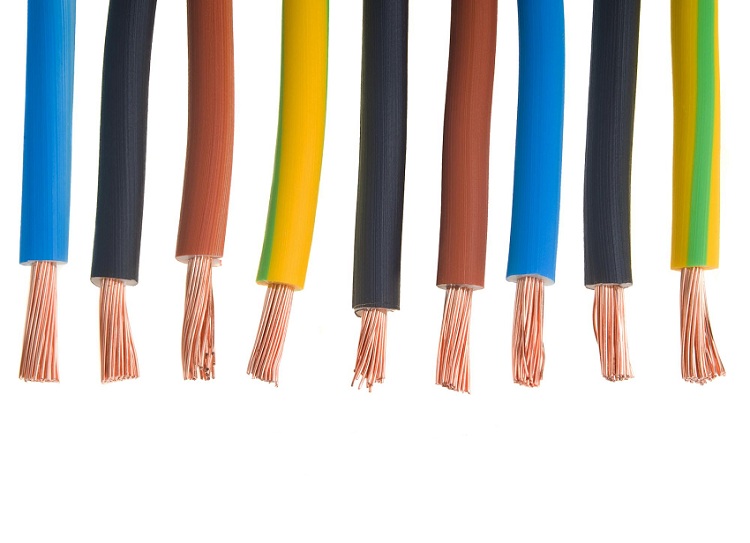

3.  Multicolor optional, color customizable:

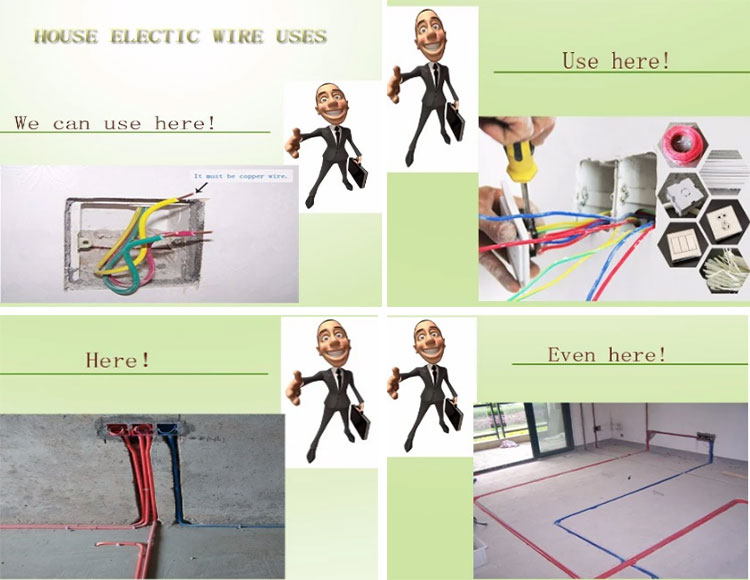

4. Application:

Used for indoor applications for electric power, lighting and internal wiring in houses.

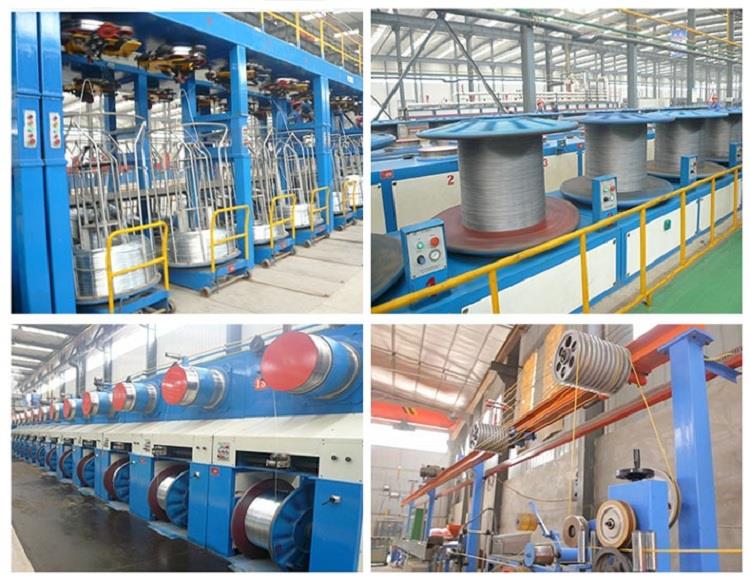

5. Our Factory:





6. Packaging Details:

100M one roll Plastic film and carton According to customer requirements

Delivery Time: Shipped in 7 days after payment

Inquiry
Hot Tags: pvc insulated electrical wire grounding earth bv cable, manufacturers, suppliers, factory, wholesale, quotation, customized
