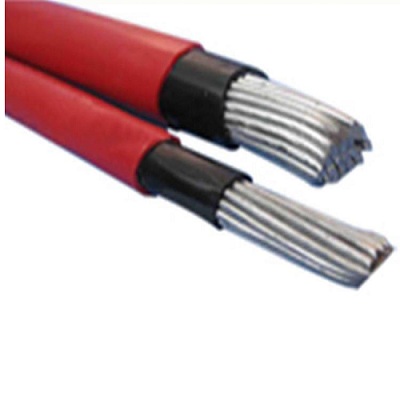

Aluminum Conductor Overhead Pvc Insulated Cable

Aluminum Conductor Overhead Pvc Insulated Cable

Aluminum conductor overhead pvc insulated cable.These cables are used for general purpose, as building wire for power, lighting and control wire to electrical appliances, suitable for use in conduit and for fixed, protected installation.... Send Inquiry
Product Details

Quick Details:

Place of Origin: China(Mainland)

Color:  Accept customize

Conductor Type: Class 1/2 Plain

Application: building wire

Rated Voltage: 300/500V/450/750V

Max. Operating Temperature:70℃

Core wire: Single  aluminum

Type: Insulated

Model Number: BLV

MOQ: 2000M

Product Description:

Type

BVV, H05VV-U, H07VV-U, H07VV-R, BS6004 6181Y, NYM

Voltage  Rate

300/500V, 450/750V

Cores

1~5 cores

Range of Nominal cross section:

Single core: 0.75 mm2 ~ 630 mm2

Multicore core: 0.75 mm2 ~ 120 mm2

Application

These cables are used for general purpose, as building wire for

power, lighting and control wire to electrical appliances, suitable

for use in conduit and for fixed, protected installation.

Standard

IEC 60227, GB/T5023, VDE0281, BS6004

Constructions

Conductor: Class 1/2 Plain annealed copper wires, solid or stranded

Insulation: PVC

Sheath: PVC

Core color: Brown, Grey, Black, Blue, Green/Yellow or

others on request

Max. Operating Temperature

70℃, can be 90℃,105℃as per requirement

Packing

100 meter/roll for small size, wooden drum for big size,

or as per requirement

Production Capacity

50 kilometer/ day

MOQ

10000 meters for small size, 5000 meters for middle size,

1000 meters for big size

Delivery time

10~15 working days

Remark

The cable can be of flame retardance, fire resistance

and other property



Main Quality Inspection Equipment:

Spark Tester,Heating aging Chamber,High resistance machine,Oxygen index equipment ,Partial discharge inspection instruments,Fireproff testing device,High-Power voltage withstand tester,No-rotor vulkameter,Pull tester, Analytical balance,Direct Current bridge.,Plastic tester,Projector,Punch machine,Cross-linked cutting machine,etc.

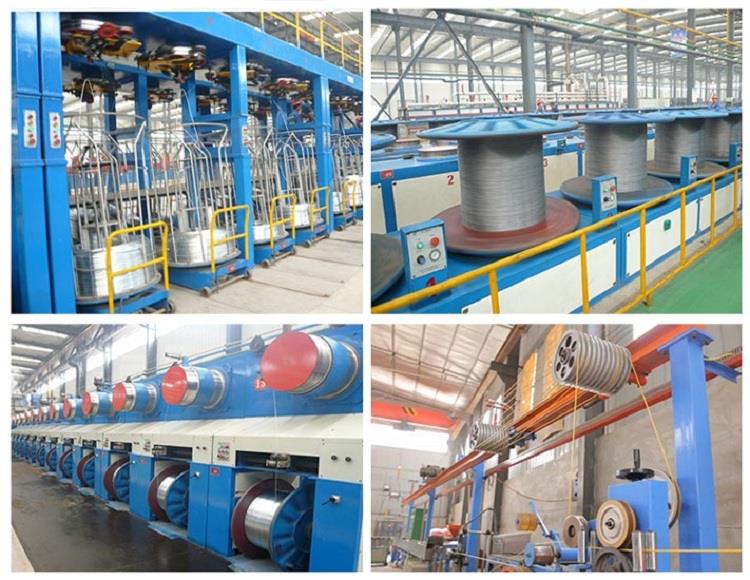

Our Factory:
