A Flat Color Coded Laminated Cables can be folded into a custom configurations where spacing constraints are a limiting design factor. When folding is preferred at assembly, Flat Color Coded Laminated Cables are pre-creases limit the stress cables normally endure from standard folding processes....Send Inquiry
Flat Color Coded Laminated Cable is constructed with 28 AWG (7/36) tinned copper. Each conductor is first extruded with SR-PVC and then all conductors are pulled in parallel and extruded in clear PVC. No lamination tapes that can impede IDC termination are used. Color code for this is Brown, Red, Orange, Yellow, Green, Blue, Violet, Gray, White, Black and repeat.
Flat Color Coded Laminated Cable Diagram
Flat Color Coded Laminated Cable Applications
●Internal Wiring of Electronic Equipment
●DB9 and DB12 Connector Applications
●Mass Termination for IDC Connectors

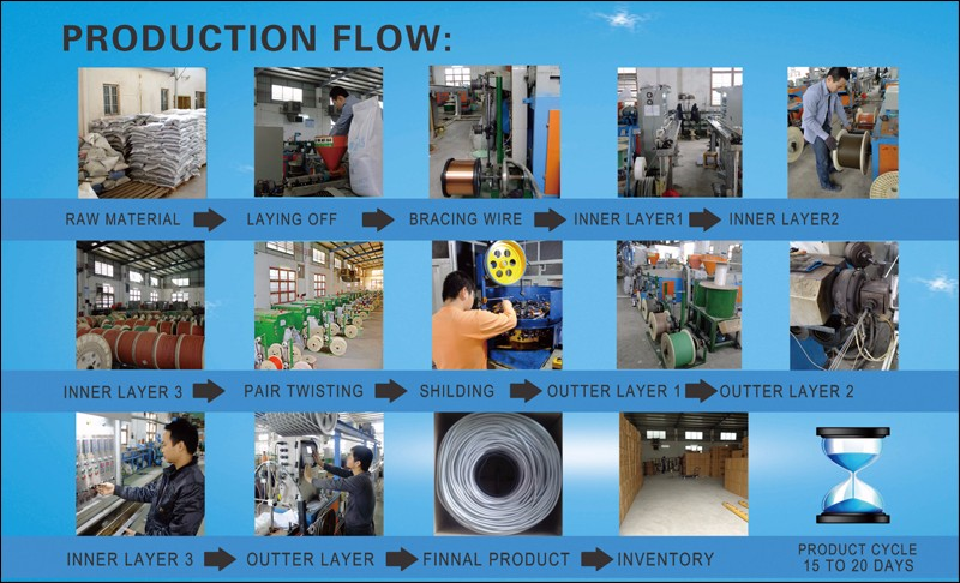

Production flow of Flat Color Coded Laminated Cable
1.What is your delivery date?
A:The delivery date is about 5-7 days after receipt of payment.
2.What are your payment terms?
A:30% deposit in advance and 70% balance before shipment.
3.Can you send free samples?
A:Yes, free samples are available; you just need to pay the shipping cost.
Our usual packaging ways for Flat Color Coded Laminated Cable are as followings, OR it can be as customer's request.
