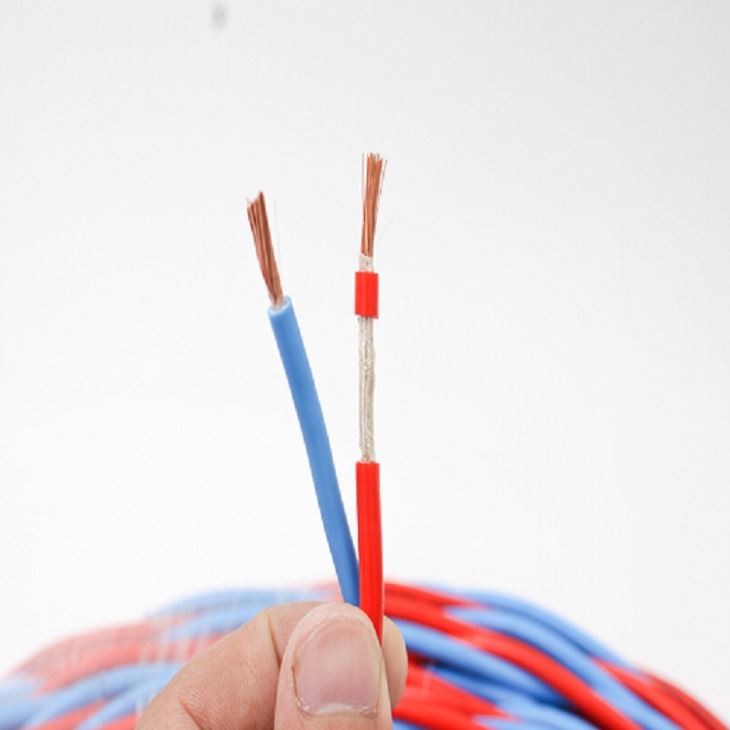

RVS Flexible Cable PVC Twisted Electric Wire

RVS Flexible Cable PVC Twisted Electric Wire

RVS flexible electric cable 450/750V PVC twisted electric wire 0.5mm rvs cable wire electrical. They are widely used as connectors of driving, lighting, electric equipment, instrument and telecommunication equipment....

Send Inquiry
Product Details

Quick Details:

Place of Origin: China(Mainland)

Packing:100/Roll

Conductor Material: copper

Core: Multiple copper cores

Rated Voltage: 300V 450V 500V 700V

Insulation: PVC

Application: house wire

Feature: High Resistance

Model Number: RVS

MOQ: 2000M

RVS flexible electric cable 450/750V PVC twisted electric wire 0.5mm rvs cable wire electrical

Product Description:

Application:

The PVC insulated wires belong to the series of laying wires, which are mainly suitable for laying at the fixed places. They are widely used as connectors of driving, lighting, electric equipment, instrument andtelecommunication equipment with rated voltage up to 450/750V(U0/U). part of the plastic insulated wires are used at the equipment with AC rated voltage up to 300V.



Type

Name

Application

Long-term

Permissible

Working Temperature

BV  BLV

Copper Conductor,PVC insulated Wire

Aluminum Conductor,PVC insulated Wire

Fixed laid in the circumstance of indoor condult etc

70

BV

Heat Resistant Copper Conductor,PVC insulated Wire at 90 degree

Fixed laid in the circumstance of

high temperature and can be laid indoor, condult etc

90

BVR

Copper Conductor

PVC insulated flexible Wire

Fixed laid where flexibility is required

70

BVV

Copper Conductor,PVC insulated

and PVC sheathed Round Wire

Fixed laid where high mechanical protection and

can be laid in the air and underground

70

BLVV

Aluminum Conductor,PVC insulated

and PVC sheathed Round Wire

BVVB

Copper Conductor,PVC insulated

and PVC sheathed flat Wire

BLVVB

Aluminum Conductor,PVC insulated

and PVC sheathed flat Wire

RV

Copper Conductor,PVC insulated

flexible Wire

Mainly used at middle and light type movable equipment, instrument and metess, power and lighting and the places where flexibility is required

70

RVB

Copper Conductor,PVC insulated flat

flexible Wire

RVS

Copper Conductor,PVC insulated flat

flexible twisting  Wire

RVV

Copper Conductor,PVC insulated

and PVC sheathed Round Flexible Wire

(Light and common type)







Our Factory:

/Content/upload/2018315804/20180511133039.jpg

Packing:

1. Packing Length:100m/roll, 200m/roll, 305m/roll, 500m/roll
2. Inner packing: Transparent Shirnk Film, Easy pull box, Wooden reel, plastic reel
3. Outer packing: Carton box, pallet available
4. Other packing available according to client's request.

Shipping:

Normally immediate shipment is available for regular items,  custom-made production lead time is 15-20 days.
