Fiberglass Insulated Cables are used to deliver the highest quality video signal. The technology uses TMDS (Transition Minimized Differential Signaling) to transmit large amounts of digital data from the source to the display, resulting in a high-quality image....Send Inquiry

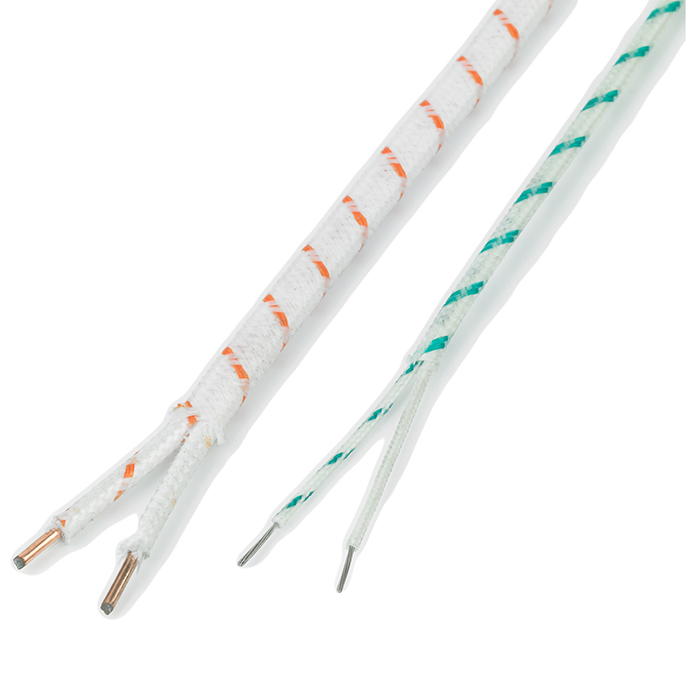

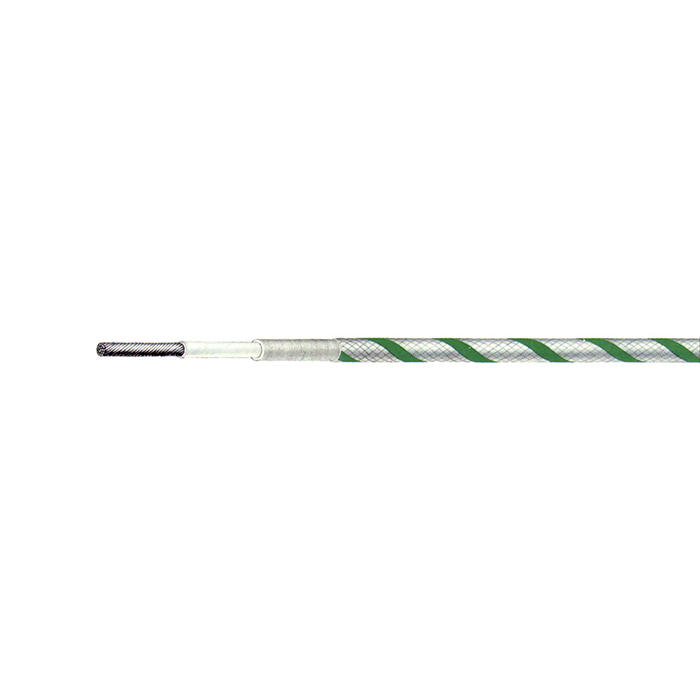

This range of Fiberglass Insulated Cable is available as a 14/0.2mm dia cable in 25, 50, 100 or 200 metre lengths in either thermocouple cable types KX, JX and RCA/SCA. Each conductor is double glass fibre lapped, glass fibre braided and silicone varnished. Pairs twisted, glass fibre braided and silicone varnished, bunched, glass fibre braided and silicone varnished.It is available with and without an overall stainless steel wire braid. All conductors used (except for compensating cable) are made from the relevant thermocouple material and meets IEC 60584-1 Class 2 : 2013 up to the maximum operating temperature of the insulation material. The insulation material is colour coded to IEC 60584-3 : 2007 as shown below. Fiberglass insulated cable is ideal for higher temperature applications up to 480°C and the rugged construction of the stainless steel braided cable makes it ideal for heavy industrial applications such as in brick kilns and in the glass industry.
●Available in either 2, 3 or 6 pairs
●Overall stainless steel braid available
●Temperature rating: 480째C
●Colour coded:- Type KX: Green outer sheath, green positive core and white negative core Type JX: Black outer sheath, black positive core and white negative core Type RCA/SCA: Orange outer sheath, orange positive core and white negative core
●Available in a variety of lengths
●Easy connection to other equipment via our range of connector systems or via the rear terminals on our range of indicators, controllers and programmers
Production flow of Fibreglass Insulated Cable
1.What is your delivery date?
A:The delivery date is about 5-7 days after receipt of payment.
2.What are your payment terms?
A:30% deposit in advance and 70% balance before shipment.
3.Can you send free samples?
A:Yes, free samples are available; you just need to pay the shipping cost.
Our usual packaging ways for Fiberglass Insulated Cable are as followings, OR it can be as customer's request.
