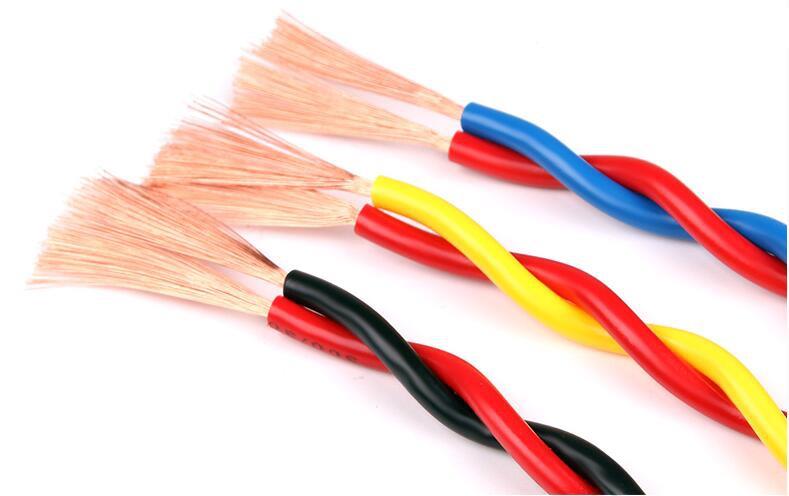

Copper Conductor PVC Insulated Lighting Cable Rvs

Copper Conductor PVC Insulated Lighting Cable Rvs

Copper conductor PVC insulated lighting cable rvs.The product is suitable for fixed wiring. It is used in power device, household electrical appliance, instrument, lighting etc with AC rated voltage up to and including 450V/750V....

Send Inquiry
Product Details

Quick Details:

Reference overall diameter: 5.8~6.2 mm

Packing:100/Roll

Conductor Material: Copper

Core: 2 cores

Rated Voltage: 300V

Insulation: PVC

Application: Underground

Feature: PVC insulated zr rvs cable

Model Number: RVS

MOQ: 2000M

Copper  conductor PVC insulated lighting cable rvs

Product Description:





PVC insulated cables and wires and cords of rated voltage up to and including 450V/750V

1. Application

The product is suitable for fixed wiring. It is used in power device, household electrical appliance, instrument, lighting etc with AC rated voltage up to and including 450V/750V.

2. Operating Characteristic

1) The rated voltage U0/U: 450V/750, 300V/500V, 300V/300V

2) The long time allowable working temperature of conductor is not more than 70 °C

3) The ambient temperature for installation is no less than 0 °C. The bending radius of a cable should not be less than 4 times of cable overall diameter below 25mm and 6 times of that for cable overall diameter no less than 25mm.

3. Executive Standard

JB/T8734-2012, GB/T5023-2008.



RVS(300/300V)

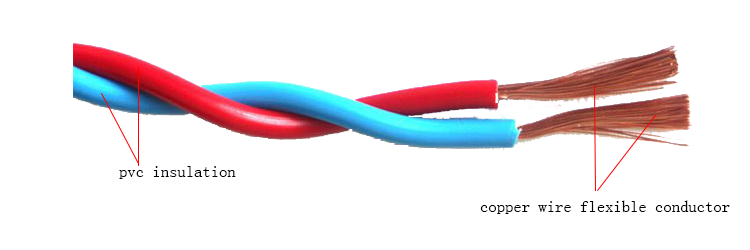

 Copper conductor PVC insulated twist connect cord

Nominal cross-sectional

area (mm2)

Insulation thickness

(mm)

Reference over all

diameter (mm)

Reference

weight(kg/km)

Reference current  rating

in air at 25°C(A)

2×0.75

0.8

5.52

27.6

12.5

2×1.0

0.8

5.90

33.8

15

2×1.5

0.8

6.48

44.6

19

2×2.5

0.8

7.30

63.2

26

2×4

0.8

8.54

97.6

36

2×6

1.0

10.28

139.0

47

Our Factory:

/Content/upload/2018315804/20180511133039.jpg

Packaging & Delivery:

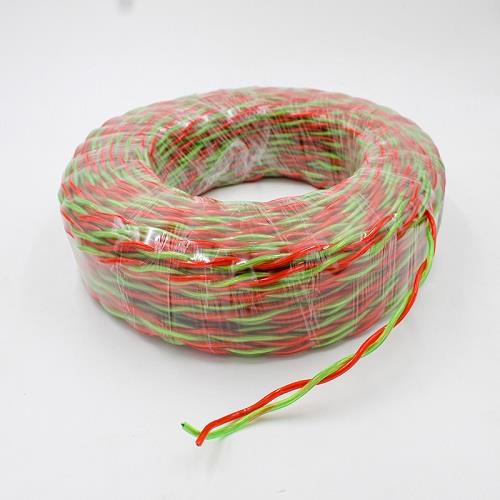

Packaging Details:Plastic film Woven bag and carton

Delivery Time:7-15 days
