BVR Electrical Wire And Cable H05V-U/ H07V-U/H07V-R Power Cable

BVR Electrical Wire And Cable H05V-U/ H07V-U/H07V-R Power Cable

PVC Insulated Household Electrical Single Wires Cable BV 1*2.5mm2 H05V-U PVC Insulated Wire or PVC wire are used for electrical transmission for building,construction and lighting,which are fit for A.C. Rated voltage 300/500V....

Send Inquiry
Product Details

BV/BVR/RV/RVV Electrical Wire and Cable H05V-U/ H07V-U/H07V-R Power Cable

Product Description:

1. The rated voltage of the cable and wires should equal to or higher then the rated voltage of the system when the cable and wires are used at AC system. If the cable and wires are used at DC system, the rated voltage of system should lower then 1.5 time as high as rated voltage of cable and wires. The working voltage of the system could be 1.1 times as high as the rated voltage of the cable.
2. The long term working temperature should lower then 70℃. The working temperature of BV-90 should lower then 90℃. And the laying temperature should higher then 0℃.
3. The curve diameter of the cable and wire should longer then 8 times of the diameter of the outer diameter of cable and wires if their outer diameter is 25 mm or above. If the diameter of cable and wires is above 25 mm, the curve diameter should be at least 12 times of the outer diameter of the cable and wires.

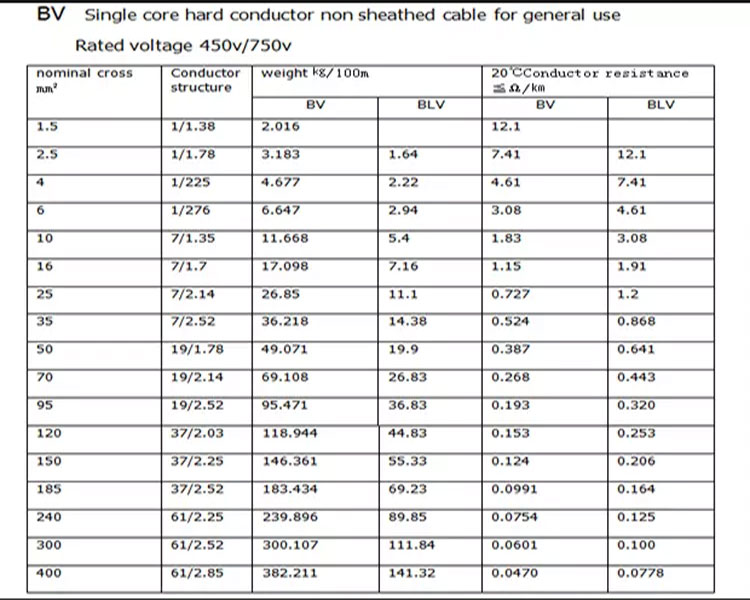

The detail and technical data of the products:

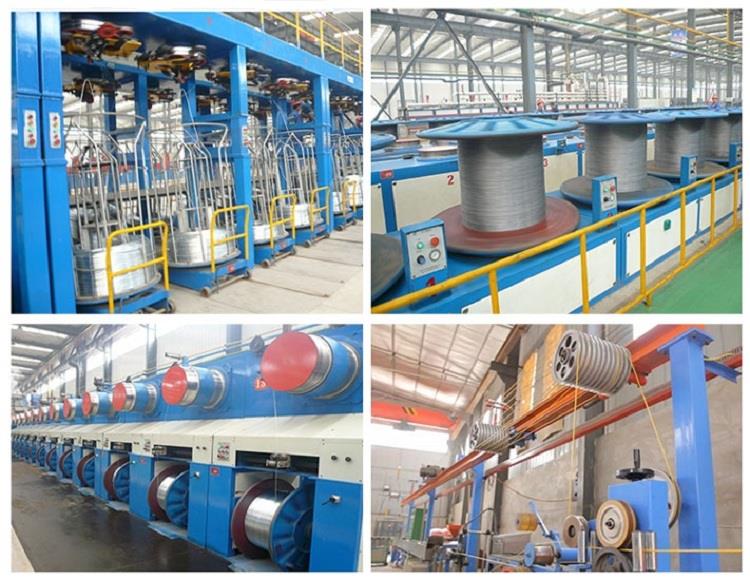

Our Factory:

Packaging & Delivery:

Packaging Details:

1) STANDARD PACKAGE: 100/ROLL FOR SIZE UNDER 35SQMM SPECIFIC LENGTH IN AN EXPORT WOODEN DRUM.
2) IN EXPORT WOODEN DRUMS FOR SIZE LARGER THAN 35SQM, WHILE WOVEN BAGS PACKING FOR OTHER TYPE.

Delivery Time: within 15 business days
