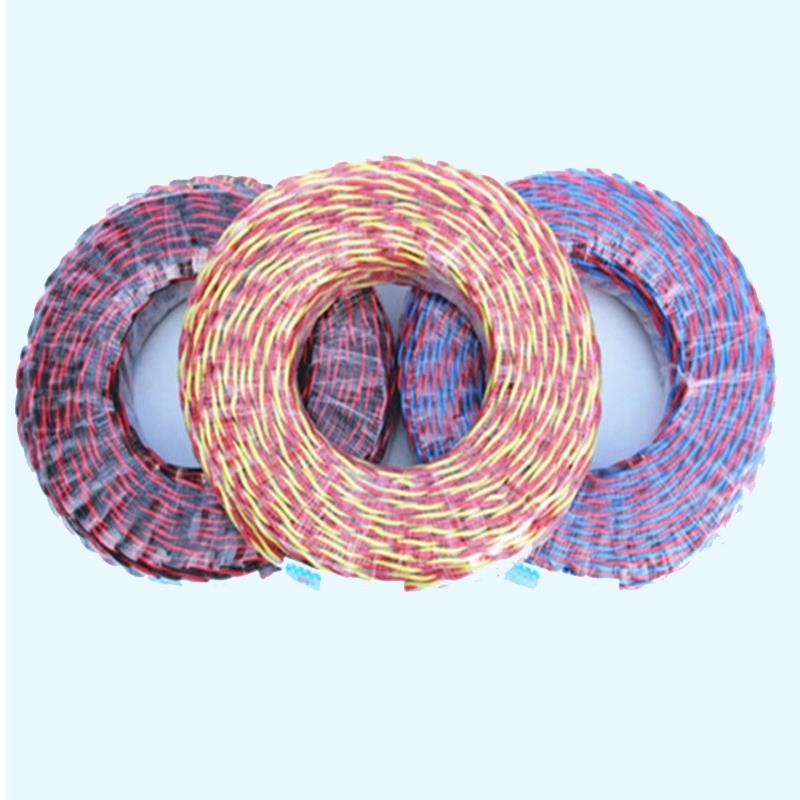

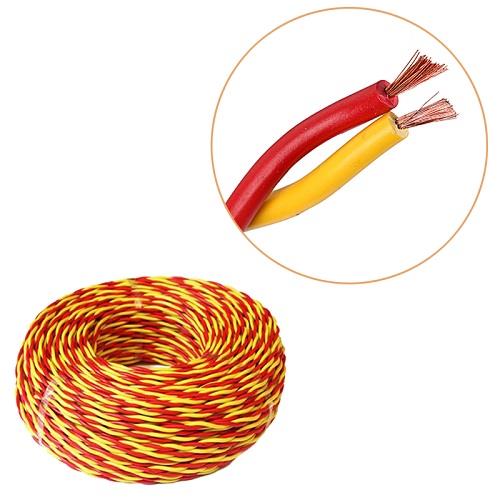

Rvs Twisted Flexible Cable Electric Power Cable Rvv Cable

Rvs Twisted Flexible Cable Electric Power Cable Rvv Cable

RVS twisted flexible cable electric power cable rvv cable.it can be used to power electrical control signal and the switching signal transmission . RV wire and cable soft structure design, conductor bending radius is small, and is suitable for wet and oil installations. Meanwhile, RV cables in access to the CCC and CE mark certification, in line with HD (EU harmonized standards) requirements applicable not only to the Chinese market, but also for the European market....

Send Inquiry
Product Details

Quick Details:

Place of Origin: China(Mainland)

Packing:100/Roll

Conductor Material: Copper / Aluminum

Core: 2 cores

Rated Voltage: 300V 450V 500V 700V

Insulation: PVC

Application: Led product

Feature: PVC insulated zr rvs cable

Model Number: RVS

MOQ: 2000M



Product Description:



Product Name

RVV insulated copper wire

Rated voltage

<1.5 sqmm 300v/500v, >1.5sqmm 450v/750v

rv cable Conductor

stranded copper conductor, in line with GB / T 3956 Category 5 (equivalent to IEC60228.5).

Insulation

PVC compounds (PVC)

Insulated colors

red, white, blue, green, brown, gray, black, customized

Cross-sectional area

0.3~70 sqmm

RV cable test voltage

2500v, 5min

Maximum temperature

-30 ℃ ~ 70 degree

RV cable Reference Standard

GB 5023, IEC60227, HD VDE21.3 S3

Packing

100m, 500m, 1000m or customized



Type

Size

Conductor Dia.

Rated Voltage

BS6004 (RV)

0.3 sqmm

16x0.15mm

300/500v

BS6004 (RV)

0.4 sqmm

23x0.15mm

300/500v

BS6004 (RV)

0.5 sqmm

16x0.2mm

300/500v

BS6004 (RV)

0.75 sqmm

24x0.2mm

300/500v

BS6004 (RV)

1.0 sqmm

32x0.2mm

300/500v

BS6004 (RV)

1.5 sqmm

48x0.2mm

300/500v

BS6004 (RV)

2.5 sqmm

49x0.25mm

300/500v

BS6004 (RV)

4.0 sqmm

56x0.3mm

450/750v

BS6004 (RV)

6.0 sqmm

84x0.3mm

450/750v

BS6004 (RV)

10.0 sqmm

84x0.3mm

450/750v



RVV cable Applications:

RVV cable distribution in the industrial field has been widely used, especially for the more stringent requirements of flexible installation options, such as cabinet, power distribution boxes and a variety of low-voltage electrical equipment, it can be used to power electrical control signal and the switching signal transmission . RV wire and cable soft structure design, conductor bending radius is small, and is suitable for wet and oil installations. Meanwhile, RV cables in access to the CCC and CE mark certification, in line with HD (EU harmonized standards) requirements applicable not only to the Chinese market, but also for the European market.
Standard cable cross-sectional area RV there 0.30,0.50,0.75,1.0,1.5,2.5,4.0,6.0,10.0,16.0,25.0,35.0,50.0,70.0mm2 ;.
Comment:

  1. higher rated voltage 600 / 1000V cable, please contact us.
  2. more core colors please contact us.
  3. other special places use products (high temperature resistance, corrosion resistance, cutting and other properties), please contact us.



RVV cable Construction:

The conductors type THW can be solid or stranded and they are built with soft temper copper, they are also insulated with an uniform layer of Chloride of Polyvinyl (PVC) thermoplastic material resistant to the moisture and the heat. They can be supplied in varied colors according to their size and with different packaging.

· ASTM B-3: Copper Annealed or Soft Wires.
· ASTM B-8: Copper Stranded Conductors in Concentric Layers, Hard, Semi-hard or Soft.
· UL - 83: Wires and Cables Insulated with Thermoplastic Material.
· NEMA WC-5: Wires and Cables Insulated with Thermoplastic Material (ICEA S-61-402) for Transmission and Distribution of Electric Power.



Packaging & Delivery:

Packaging Details:

Export wooden drum, wooden iron drum and other export standard package.

Delivery Time :Shipped in 15 days after payment
